Penguin Chillers - Cold Therapy Chiller
AUTHORIZED DEALER
FREE SHIPPING (Lower 48 States)
NO SALES TAX (Except Nevada)
In Stock: Ships within 1-2 business days
Whether you are new to cold therapy or a seasoned pro, you are likely doing it for the benefits that exposure to cold offers rather than the physical workout you’ll get from lugging all the ice needed to keep up with it. Let’s face it – keeping up with the amount of ice needed to keep an ice bath cold can get to be quite the burden. Penguin Chillers will keep your ice bath cold effortlessly, this should lead to more consistent and frequent usage. Make the most out of your ice bath by turning it into an iceless bath!
The chiller can reach into the low 40°F, even down into high 30°F with the right conditions. Ambient temps and sun exposure account for the majority of the heat load on a cold therapy tub (your body heat is insignificant compared to the sun). Reducing the external heat load will improve chiller performance. Low to mid 40°F should be possible on this setup even in full sun / less than ideal conditions. Penguin cold therapy chillers can be used indoors and outdoors, except in freezing conditions. It is not recommended putting the chiller in an area that cannot get wet as the chiller, along with the tubing, will produce condensation.
Penguin Chillers’ lowest recommended operating temperature is 37° Fahrenheit. Many customers still ask us if their unit can chill lower than 37° F. The answer would be yes it can however, it is strongly recommended to not continuously running your water chiller lower than a set point of 37° F. On 5 gallons of water, it was tested and reached temperatures down to 36° F. Keep in mind that the temperature your chiller is capable of reaching is completely dependent upon your chillers’ setup. Factors such as your goal temperature, the amount of liquid you’re cooling and its heat load plus the ambient conditions in which your chiller is being used are all variables that contribute directly to the temperature your unit will be able to achieve.
Info and Details
CHILLER SPECIFICATIONS:
- 3/4HP High Efficiency Chiller
- 7,500 BTU/hr
- 56 dBA (fairly quiet)
- 110 – 120 Volts / 450 Watts / 3.9 Amps
- 17”W x 15”L x 13”H
- 49 lbs
- Built in Pump

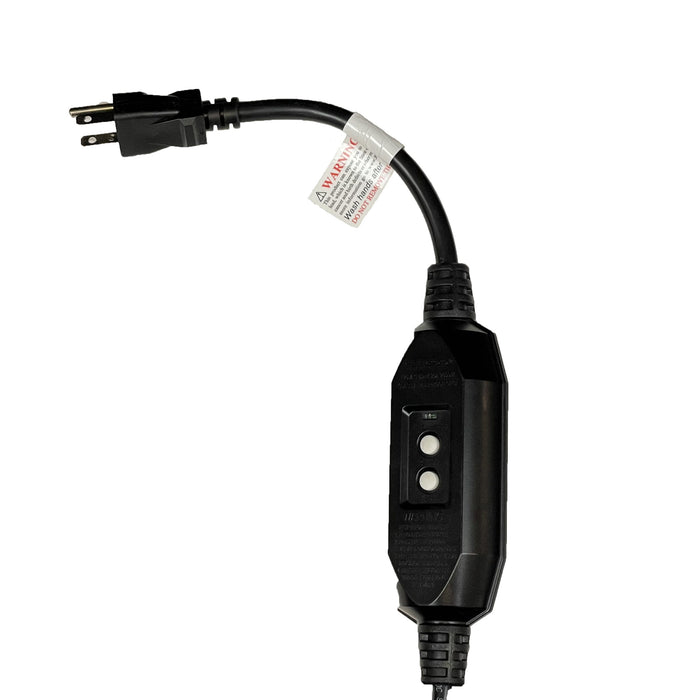

- 10′ power cord with GFCI protection
- Rain Proof (disconnect chiller and drain completely when ambient temps are freezing or below to prevent damage to chiller)
CHILLER INCLUDES:

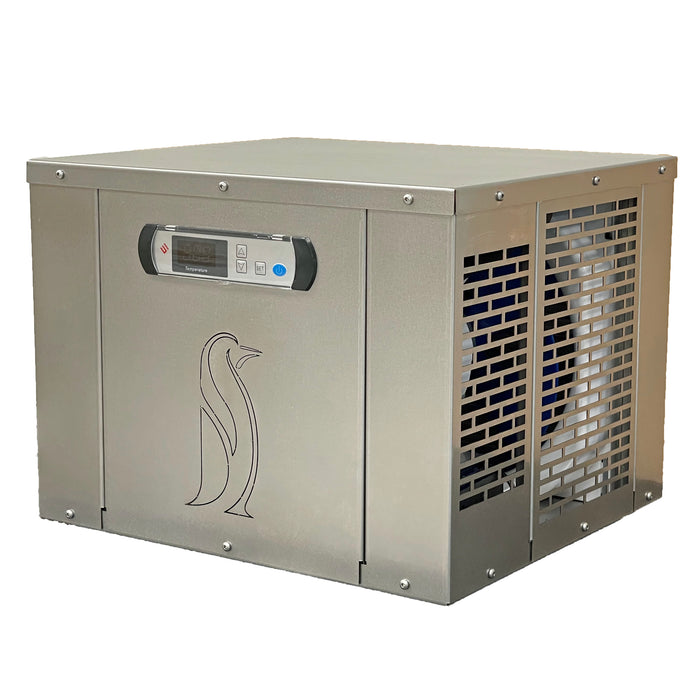

- 3/4HP Cold Therapy Chiller with built in pump – outdoor rated
- QTY 2 quick connect fittings to mate with fittings on the back of the chiller, fittings have 3/4″ barbs for connecting 3/4″ ID tubing to the chiller (tubing sold separately)
- Inline Screen – coarse filter to catch hair and large debris prior to chiller
INSTALL KITS INCLUDES:
- Attached filter canister with 150 micron washable / reusable filter. 3/4″ barbed connections
- 3/4″ ID Black vinyl tubing – QTY 2 – 6′ lengths
- QTY 2 bulkheads – require 1″ hole through the wall of your tank
- Barb fittings to fit the bulkheads and connect the 3/4″
- QTY 8 hose clamps
***Please note your setup needs to gravity prime to the pump, the pump is not capable of self priming/suction. Place the chiller within 3′ of the drain of your tub, the bottom of the chiller should be at the same or lower height compared to the bottom of your tub – do not elevate the chiller above the tub. An overly long tubing run from the tub drain to the chiller inlet may cause the pump to fail to move enough water.***
